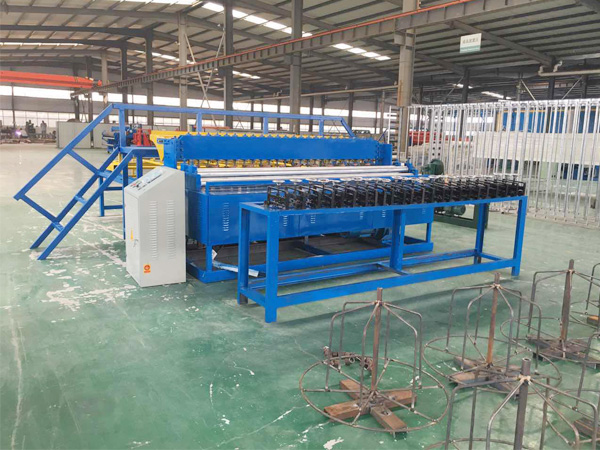

一、Equipment include: PLC electric box,welding machine,pulling mesh part,moving mesh platform.
二、Equipment parameters
Control type:PLC CNC
Features: It can produce in roll and panel mesh (when Produce rolling mesh the pay-off stand is Coil Wire)
Welding wire dia:2.5mm-6.0mm
Horizontal welding mesh size:50-300mm
Vertical welding mesh size:10-300mm
Welding length:0-6000mm
Cutting type:cutting by automatic
Welding speed:45-60times/min
Weld wire fall type:big pulsator motor fall wire independently
Power:125KVA
