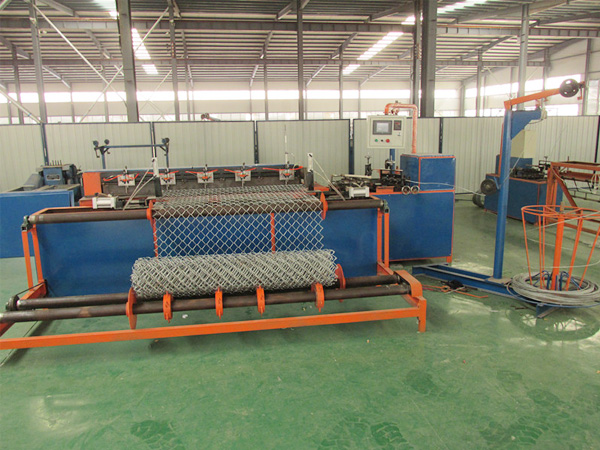

The introduce of machine
The innovative diamond shape mesh machine use the principle of bionics.it is the integration of machinery,digital control and aero dynamic.Simulating cross the mesh by hand.Automatically overlock and wrap the mesh.The main technical parameters take the lead in the sane species.
 Good performance:
1.The production efficiency is about twice of the same species.
2.The fault is the lowest in the same species.
3.The machine is easy and simple to handle.The worker has the common mechanical knowledge can master it in one hour.
4.The loss of the raw material of the same species is 5%-7%,while the innovative diamond mesh machine is nearly zero.
5.The mesh size has a wide adjustable range
6.The preferential price and the first-class quality is the most ideally choice of the customers.
7.Has national patent
Main technical parameter
1.The power:2.2kw(main machine for weaving mesh),0.75kw(roll mesh),0.08kw(water pump)
2.The diameter of the wire :1.5-4.5mm
3.Mesh size:20mm-80mm
4.The width:600mm-2000mm（we also have 3m and 4m width）
5.The production efficiency:70-90 M2/hour
6.Voltage:380V 50HZ
7.Machine weight:2.5T
8.Have national patent
9.The edge :twist or overlock
10.The overall size:main machine:3200*2500*1100mm
11.cross wire part:1300*700*1750mm
12.two mould, two wire
13.raw material: high quality low carbon steel wire, galvanized wire, stainless steel wire, PVC coated wire, redrawing wire
